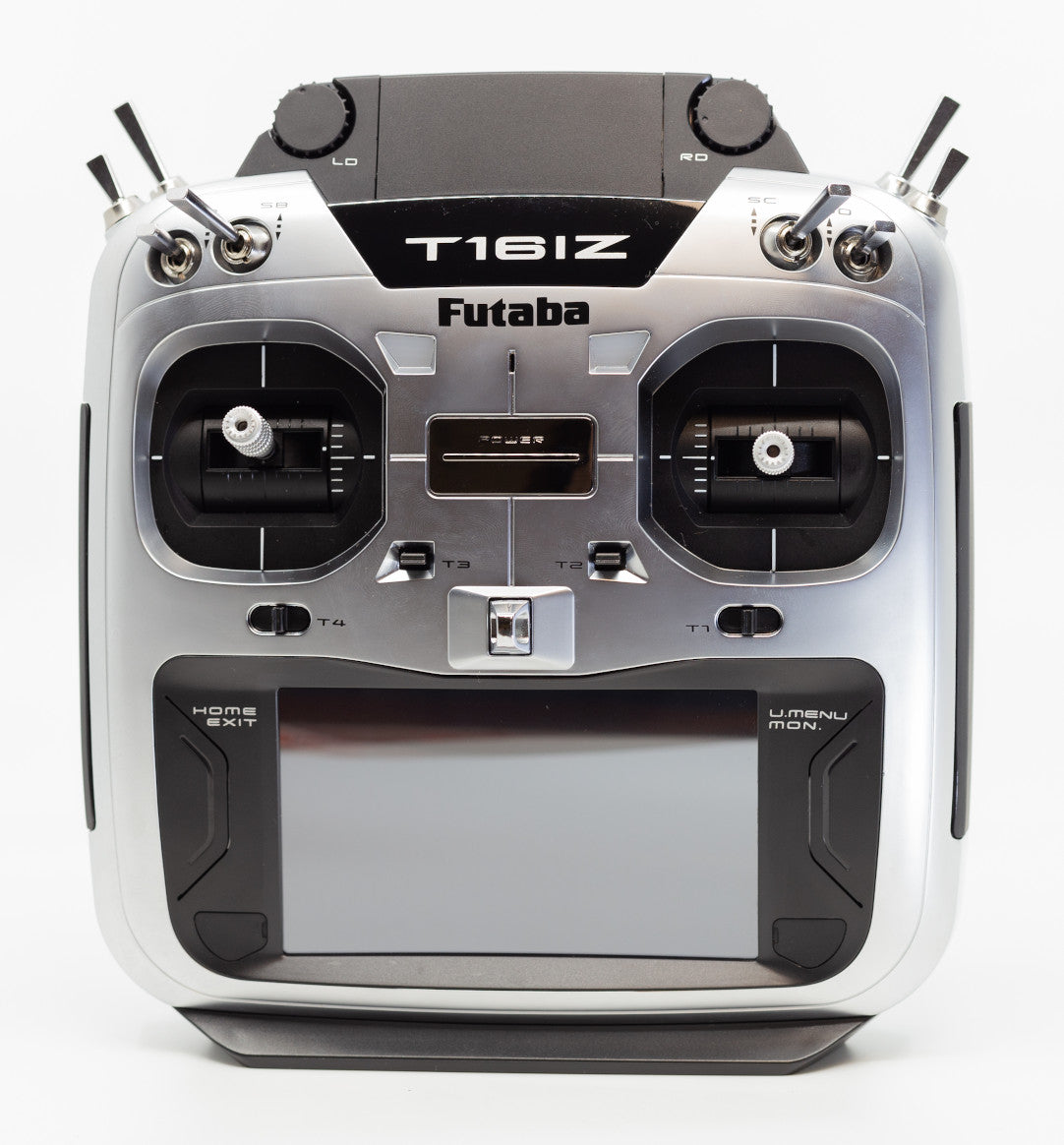

FEATURES

FASSTEST SYSTEM:
The 16IZ transmitter adopted the bidirectional communication system "FASSTest". Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL:
The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD:
T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.



MULTI HOLDER:

T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry:
The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.



SECURE DATA (SD CARD):
Model data, music files, voice files, and picture files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:
The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7108SB:
The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

CONTENTS

YOUR T16IZ (PACKAGED WITH A S.BUS RECEIVER) INCLUDES THE FOLLOWING COMPONENTS:

T16IZ Transmitter (Air Version includes ratcheting throttle, Helicopter Version includes smooth throttle)
R7108SB
LT2F2000B Lithium Polymer Battery and USB cable for charging
Switch Harness
Neck Strap
Manual (Printed short version)
TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

OPERATING SYSTEM:
2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

POWER SUPPLY:
7.4 V LT2F2000B Lithium-polymer battery

RF POWER OUTPUT:
100 mW EIRP

WEIGHT (with battery):
TBD



RECEIVER SPECS

R7108SB

SIZE:
24.9 mm x 47.3 mm x 14.3 mm

WEIGHT:
12.0 g

POWER REQUIREMENTS:
6.6 V LiFe Battery

CURRENT DRAIN:
75 mA

RF POWER OUTPUT:
25 mW EIRP
