This is a radio control assembly kit of the Toyota GAZOO Racing WRT/GR Yaris Rally1 Hybrid that began competing in 2022 in compliance with Rally 1 restrictions. The combination of hybrid unit integrated with motor and generator and engine is capable of over 500PS and 500Nm, while the car also features regenerative charging during brake function. A 1.6-liter inline 4-cylinder direct injection turbo engine uses non-fossil fuel. In addition to side skirts and large rear wing, air ducts are equipped right and left at the rear to cool down the hybrid unit. In 2022, it achieved both Manufacturer's and Driver's Championships.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

NOTE: Item is sold as a kit, and requires assembly, tools, and finishing items such as paint.

Required to Complete:

• 2-channel radio
• steering servo
• 7.2-7.4volt battery
• battery charger
• Tamiya PS paint

Features:

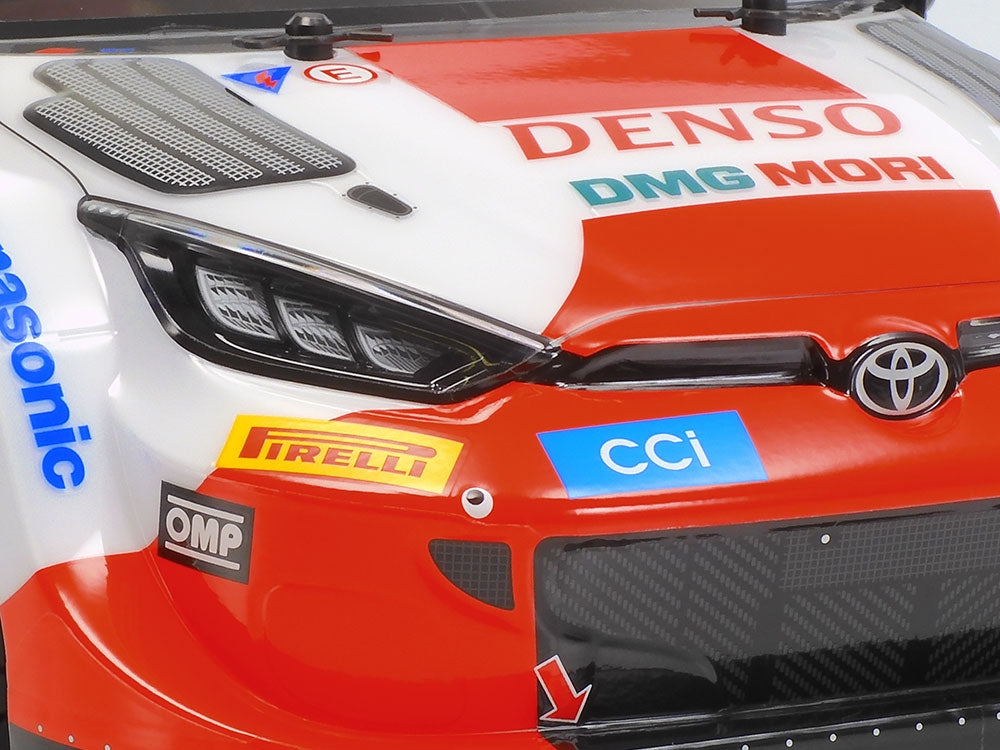

• The headlight case is a separate part made of polycarbonate.
• The characteristic rectangular door mirrors are supported by the stays placed right next to it, which are separate parts.
• The large air ducts on both sides of the rear of the body that cool the hybrid system are also separate parts made of resin

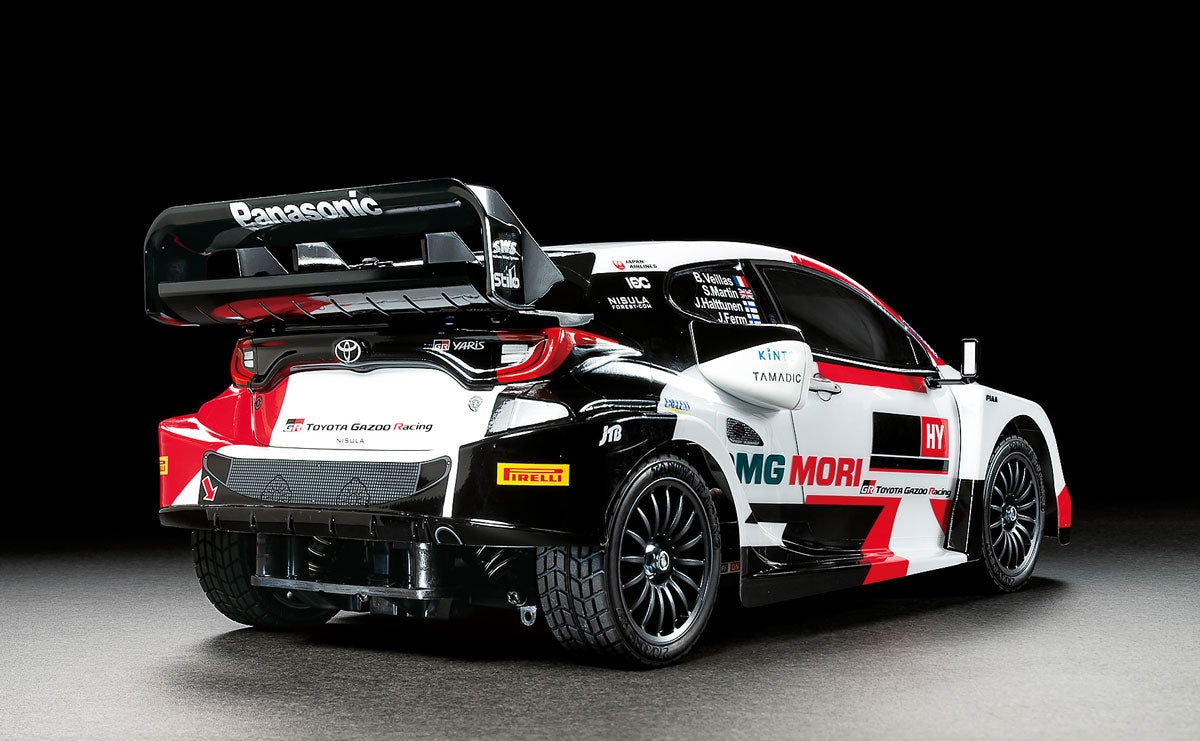

• Features complex modeling of the rear of the car body, such as the rear wing and large bumper
• The rear wing, which has four vertical splitters (vertical rectifiers), has a two-part structure that realistically reproduces its unique shape

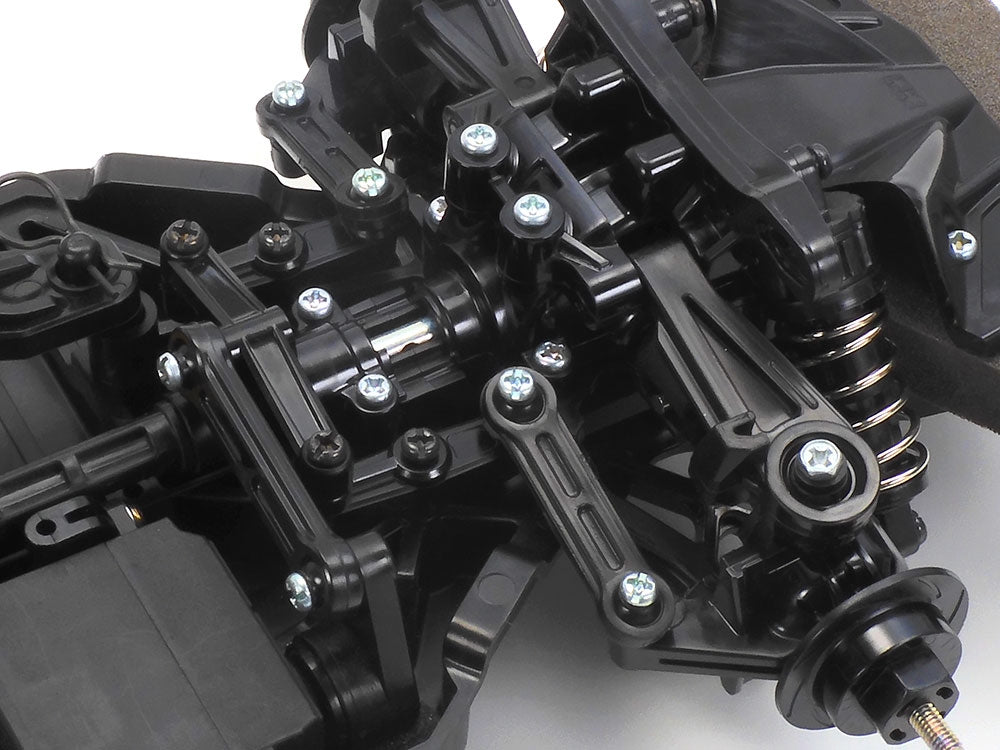

• Double wishbone type front suspension, equipped with friction dampers
• A removable cooling duct is also available for the motor cover
• Double wishbone type rear suspension. The wheel hub is an image of a brake disc with a slit rotor

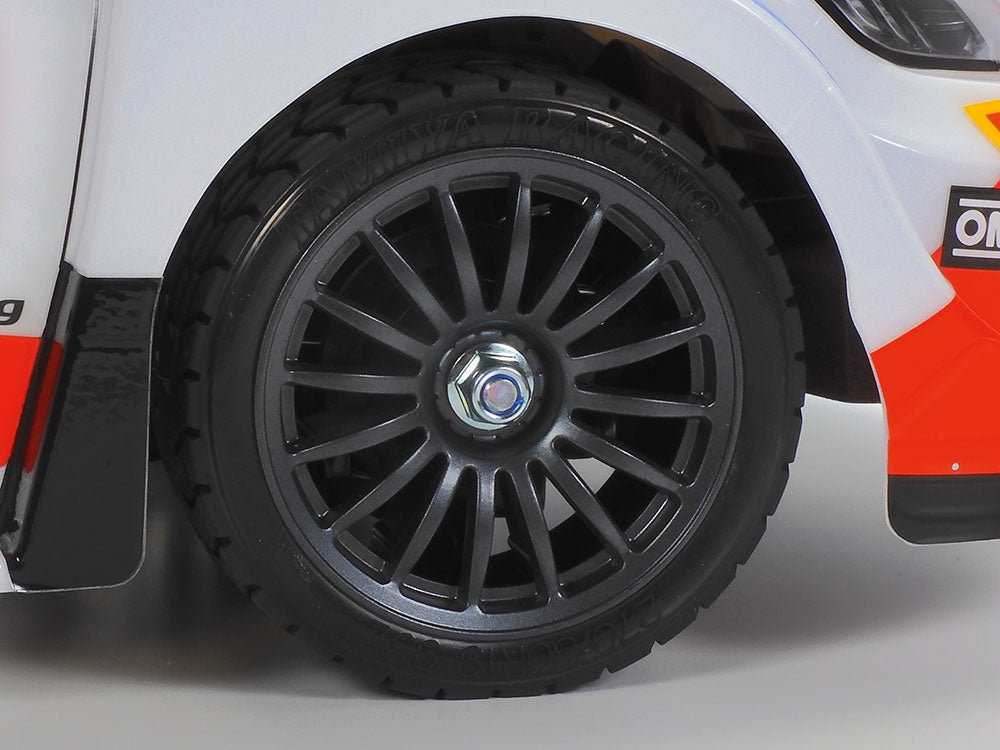

• Racing radial tires are attached to dark gunmetal fin wheels

Specifications:

• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate
• Body Stickers: Included
• Chassis Material: ABS Plastic
• Chassis Type: TT-02
• Construction Type: Assembly Kit
• Differential Type: Gear
• Drive Type: 4WD
• Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor: 540-brushed type
• Scale: 1/10
• Length: 416mm, width: 190mm, height: 146mm, Wheelbase: 257mm
• Shock Damper: Friction type
• Suspension: Fully Independent Double Wishbone
• Terrain Use: On-Road
