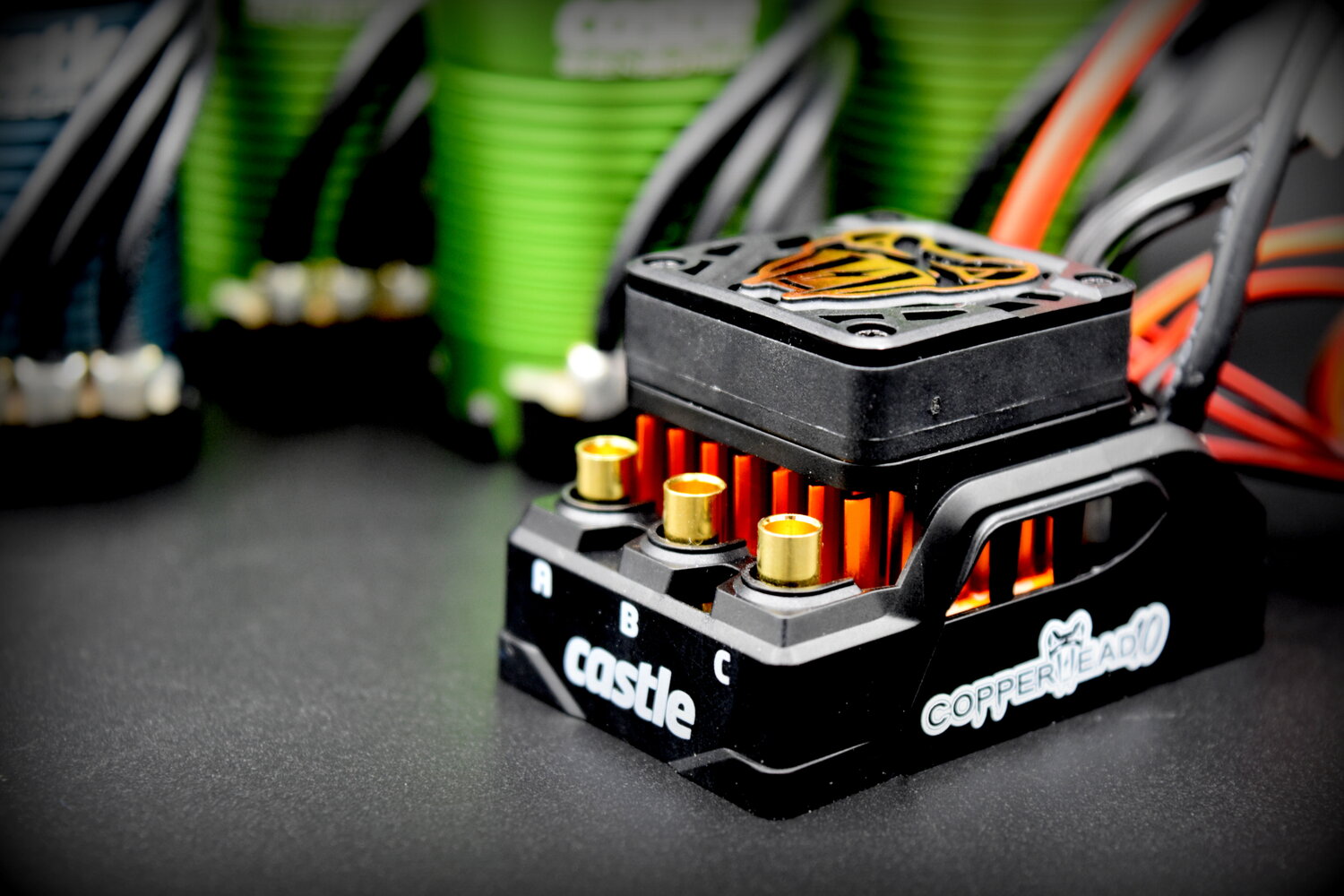

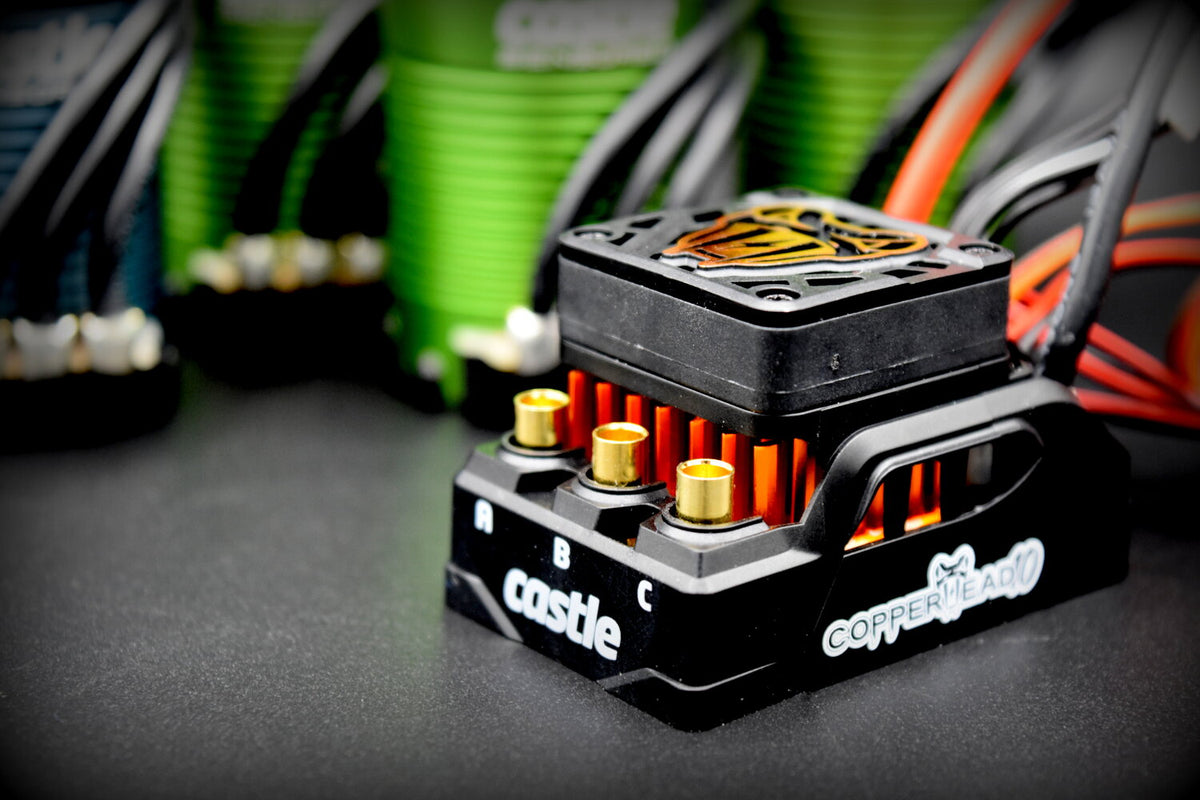

The COPPERHEAD 10 PERFORMANCE 1:10 SCALE ESC is ideal for those who want sensored motor support, data logging, a 6A peak selectable internal BEC (5.5V or 7.5V) and Castle's signature reliability and performance, in the meanest looking ESC around! If you're looking to transform your 1:10 scale stock vehicle from dull to dangerously fun, COPPERHEAD can do it with its buttery smooth starts, CRYO-DRIVE enabled performance, and up to 4S power in a compact, easy-to-install footprint.

FEATURES:

Input Voltage Range (ESC): 2s-4s LiPo

SMARTSENSE, SENSORED ONLY and BRUSHED Running Modes

Selectable 5.5V or 7.5V (6A peak) BEC (Battery Eliminator Circuit)

CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.

ESC is housed in a durable injection molded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.

30mm removable fan and DUAL USE FAN GUARD

Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters

AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.

DATA LOGGING LITE captures and records performance data from your vehicle to maximize performance and battery life. (Battery Voltage Battery Ripple, Controller temp, Motor RPM, Motor Temp)

SMARTSENSE uses the motor's sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle's ultra-efficient sensorless mode.

Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake

Optional smartphone-based programming with the B-LINK BLUETOOTH ADAPTER (sold separately) and CASTLE LINK APP available on Google Play or Apple App Store

Motor Technical Specs
Input Voltage Range: 2-3S LiPo
Kv: 4600
Max. RPM: 100,000
Size: Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 197 g / 6.9oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: 1:10 scale 2WD SCT, on-road touring, stadium truck and buggies
Max. Recommended Vehicle Weight: 2WD SCT Trucks up to 5lbs, stadium trucks, buggies, and on-road vehicles up to 4lbs.
